Valve Selection for Extreme Temperature Applications in Power Generation: Engineering Guide for Critical Infrastructure

When critical valves fail in ultra-supercritical power plants operating at temperatures exceeding 600°C, the cascading consequences extend far beyond the component itself. Unplanned shutdowns disrupt power generation capacity, trigger emergency maintenance protocols, and create substantial financial losses through lost production, overtime labor costs, and expedited equipment procurement.

Industry research reveals a concerning pattern: over 25% of downtime incidents in power generation and petrochemical facilities stem from valve-related failures, with improper material selection representing the leading cause of premature component degradation. According to ABB’s Value of Reliability report, commissioned by ABB and based on a global survey of 3,215 plant maintenance decision-makers conducted in July 2023 (released in October 2023), the median cost of unplanned downtime is approximately $125,000 per hour. The report uses median values to reflect a more typical operational impact. In high-output sectors such as power generation and utilities, downtime costs are significantly higher, with estimates reaching up to $180,000 per hour, reinforcing the growing need for proactive reliability and maintenance strategies.

This comprehensive engineering guide examines the critical technical considerations for selecting valves in extreme temperature power generation applications. Designed for procurement professionals, plant engineers, and operations managers across global markets—from the Middle East and Africa to Southeast Asia and beyond—this analysis provides the framework to prevent costly failures while optimizing long-term operational reliability.

Understanding Extreme Temperature Challenges in Modern Power Generation

The Operating Environment Reality

Modern power plants push thermal performance boundaries to maximize efficiency and meet stringent environmental regulations. Ultra-supercritical (USC) power plants now operate at pressures exceeding 22.1 MPa (3,200 psi) and temperatures above 600°C (1,112°F)—conditions that create extraordinary demands on valve materials and design integrity.

Temperature Ranges by Power Generation Type:

Supercritical Steam Systems: 565-600°C (1,049-1,112°F)
Ultra-Supercritical Plants: 600-650°C (1,112-1,202°F)
Gas Turbine Exhaust: 500-650°C (932-1,202°F)
Concentrated Solar Thermal: 400-565°C (752-1,049°F) with thermal cycling
Geothermal Applications: 150-370°C (302-698°F) with corrosive brine

The challenge intensifies with flexible power dispatch requirements supporting renewable energy integration. Modern plants must handle frequent thermal cycling, rapid start-up/shutdown sequences, and partial load operations—each cycle adding cumulative stress through thermal expansion, material fatigue, and seal degradation.

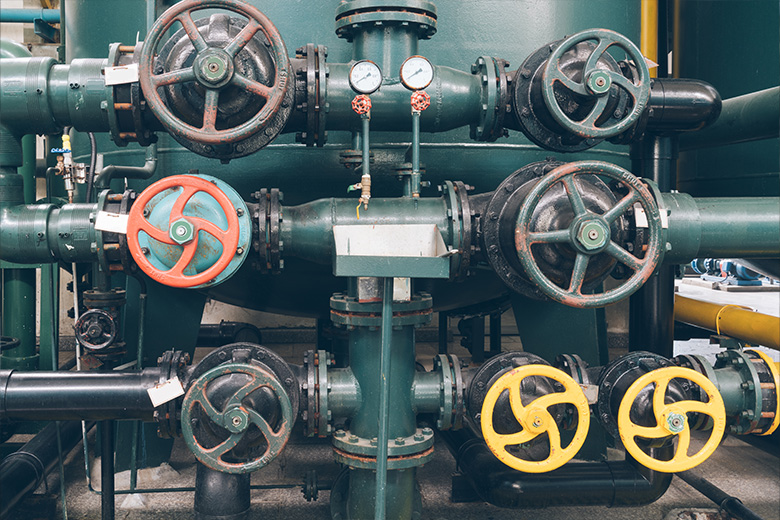

Critical Failure Modes in High-Temperature Service

Understanding how valves fail under extreme conditions forms the foundation for proper material selection:

1. Thermal Fatigue and Creep

At sustained temperatures exceeding 540°C, many standard alloys experience creep—permanent deformation under constant mechanical stress even when loads remain below yield strength. Continuous exposure causes valve bodies and stems to gradually distort, creating misalignment, binding mechanisms, and eventual structural failure. Thermal cycling compounds this effect, with repeated expansion-contraction cycles accelerating material degradation through low-cycle fatigue.

2. Seal and Packing Degradation

Temperature-dependent seal failure follows predictable patterns based on material chemistry:

Standard Elastomers
Catastrophic failure above 200°C

PTFE-Enhanced Graphite
Begins deteriorating at 260-288°C as PTFE melts (commonly used but temperature-limited)

Pure Flexible Graphite in Steam
Rated to 650°C (1,200°F) in non-oxidizing steam environments

Pure Flexible Graphite in Air/Oxidizing Atmosphere
Limited to 450°C (850°F) due to oxidation reactions where carbon reacts with oxygen

According to Garlock Sealing Technologies technical specifications, graphite oxidation above 450°C in atmospheric oxygen causes the material to degas as CO2, resulting in load loss and eventual seal failure. This critical temperature limitation significantly impacts valve packing selection for high-temperature applications exposed to air during maintenance or operational upset conditions.

3. Corrosion and Oxidation at Elevated Temperatures

High-temperature steam, combustion gases, and thermal fluids create aggressive chemical environments. At 600°C, metal surfaces undergo accelerated oxidation where base metals react with oxygen to form surface oxide scales. While protective chromium oxides (Cr2O3) provide corrosion resistance in stainless steels, other oxide formations can spall and flake, causing “oxide notching” that initiates stress corrosion cracking.

Sulfur compounds in combustion environments form sulfuric acid at elevated temperatures, while chloride-containing atmospheres (particularly in coastal power plants) accelerate localized pitting and crevice corrosion. Material selection must account for these site-specific environmental factors.

4. Galling and Seizure

Metal-to-metal contact between similar alloys at extreme temperatures creates adhesive wear through atomic bonding at contact surfaces. Stainless steel components prove particularly susceptible above 200°C, where surface welding can permanently seize valve stems.

Industry standard practice employs hard-facing technologies (Stellite cobalt-chromium alloys) on all valve trim and bushing surfaces for applications exceeding 200°C service temperature. Stellite 6 hardfacing, with its combination of hardness (approximately 40 HRC) and high-temperature stability, effectively prevents galling while maintaining dimensional stability.

Material Selection Framework: Engineering for Thermal Extremes

Understanding Pressure-Temperature Ratings

Valve selection begins with comprehensive understanding of ASME B16.34 pressure-temperature derating characteristics. A critical principle often overlooked: material pressure ratings decline substantially as operating temperatures increase.

Pressure Deration Example (ASME B16.34 Class 300):

Carbon Steel A105 at 38°C (100°F): 740 psig rated pressure
Carbon Steel A105 at 343°C (650°F): 470 psig rated pressure (36% reduction)
316 Stainless Steel at 38°C (100°F): 748 psig rated pressure
316 Stainless Steel at 343°C (650°F): 485 psig rated pressure (35% reduction)

This temperature-dependent pressure capability means valves adequately rated for ambient service may be critically under-specified for high-temperature applications—a specification error that leads to premature failure through overstress conditions.

Material Selection by Operating Temperature

300-450°C Applications (572-842°F): Carbon Steel and Low-Alloy Steel

Primary Materials: Carbon Steel (ASTM A105), Low-Alloy Steel (A182 F11, F22)
Applications: Moderate-temperature feedwater systems, economizer circuits
Cost Factor: Baseline (1.0x reference)
Limitations: Limited oxidation resistance; unsuitable for corrosive combustion gases
Typical Use: Boiler feedwater isolation, condensate systems

450-540°C Applications (842-1,004°F): Chromium-Molybdenum Steels

Primary Materials: F22 (2.25Cr-1Mo), F91 (9Cr-1Mo-V modified)
Applications: High-pressure steam lines, superheater connections, steam headers
Cost Factor: 1.3-1.8x vs. carbon steel
Advantages: Enhanced creep resistance through chromium and molybdenum additions, improved thermal fatigue performance, good weldability
Industry Standard: F22 widely used in subcritical and supercritical plants; F91 specified for ultra-supercritical applications

540-620°C Applications (1,004-1,148°F): Austenitic Stainless Steels

Primary Materials: 316/316L Stainless Steel (baseline), 321 Stainless Steel (titanium-stabilized), 347 Stainless Steel (niobium-stabilized)
Applications: Supercritical steam systems, control valve trim, corrosive gas service
Cost Factor: 2.0-2.5x vs. carbon steel
Critical Features:
- Chromium content (16-18%) provides oxidation resistance through passive Cr2O3 layer formation
- Stabilized grades (321, 347) prevent intergranular corrosion during welding
- Superior ductility maintains integrity during thermal cycling
Service Temperature Limit: Approximately 620°C for sustained operation; carbide precipitation concerns above this temperature

620-650°C+ Applications (1,148-1,202°F+): Nickel-Based Superalloys

Primary Materials: Inconel 600/625, Hastelloy C-276, Alloy 718
Applications: Ultra-supercritical steam, hydrogen service, carbon capture systems (CCUS), severe corrosive environments
Cost Factor: 3.0-5.0x vs. carbon steel
Performance Characteristics:
- Maintains mechanical strength above 650°C through gamma-prime (Ni3Al) precipitation strengthening
- Excellent oxidation and corrosion resistance via chromium-aluminum oxide formation
- Resistant to hydrogen embrittlement (critical for H2 economy applications)
Emerging Applications: Cryogenic hydrogen valves (-253°C) for liquid H2 storage; CO2-resistant valves for carbon capture requiring 90%+ capture efficiency

Specialized Coatings and Surface Engineering

Advanced surface treatments extend valve service life and performance:

Ceramic Coatings (Al2O3, Cr2O3)
Prevent galling through reduced friction coefficient; extend valve life 40-50% in high-cycle applications

Laser Cladding
Deposits corrosion-resistant alloy layers on less expensive base materials without heat-affected-zone degradation

Hardfacing (Stellite 6, Colmonoy 6)
Industry standard for seating surfaces above 200°C; cobalt-chromium-tungsten alloys maintain hardness at temperature

Thermal Barrier Coatings
Yttria-stabilized zirconia reduces heat transfer to stems and actuators in extreme temperature service

Valve Type Selection for High-Temperature Power Applications

Gate Valves: Primary Isolation in Steam Systems

Main steam line isolation
Boiler feedwater isolation
Emergency shutdown systems (ESS)
Long-term isolation service with infrequent operation

High-Temperature Design Considerations:

Gate valves excel in on-off isolation service where tight shutoff during process flow isn’t required. The straight-through flow path minimizes pressure drop—critical in high-energy steam systems where every pressure loss reduces turbine efficiency.

Globe Valves: Precision Throttling Control

Steam temperature control (desuperheating stations)
Pressure reduction services
Turbine bypass systems
Flow modulation in heat recovery steam generators (HRSG)

High-Temperature Advantages:

The globe valve’s tortuous flow path creates higher pressure drops but enables superior throttling characteristics essential for precise temperature and pressure control. Cage-guided designs maintain stem-to-seat alignment during thermal expansion, preventing binding while ensuring consistent flow characteristics.

Ball Valves: Quarter-Turn Reliability

Optimal Applications:

Quick-isolation requirements (emergency shutdown)
Frequent-cycling service
Bidirectional flow control
Space-constrained installations

High-Temperature Ball Valve Design

Metal Seat Technology: Elastomeric seats fail catastrophically above 200°C; metal-seated designs using 316SS or Inconel seats enable 650°C service
Thermal Expansion Management: Ball and seat materials must have matched thermal expansion coefficients to maintain seal integrity across temperature range
Fire-Safe Certification: API 607 (6th Edition) and API 6FA testing validates performance during fire exposure
Spring-Loaded Seats: Maintain contact pressure as materials expand; typically Inconel X-750 springs for high-temperature resilience
Cavity Relief: Prevents pressure buildup in body cavity during thermal expansion

Specialized Valve Technologies for Power Generation

Butterfly Valves – Large Diameter Gas Isolation
Cost-effective for flue gas ductwork (400-500°C) and large-bore cooling water systems. High-performance triple-offset designs with metal seats now handle 540°C in power plant applications, offering significant cost advantages over gate valves in large sizes (DN600+).

Check Valves – Critical Backflow Prevention
Essential in boiler feedwater systems where backflow could damage pumps or contaminate systems. Dual-plate designs withstand high-cycle service better than swing checks through lower mass and balanced closing dynamics. Material selection follows ASME pressure vessel standards—F22 minimum for 540°C+ service with hardfaced seating surfaces.

Control Valves – Precision Process Optimization
Severe-service designs handle pressure drops exceeding 100 bar while maintaining Class V or Class VI shutoff. Specialized power generation product lines from manufacturers like Fisher (Emerson), Masoneilan (Baker Hughes), and Flowserve incorporate anti-cavitation trims, high-capacity cages, and hardened materials engineered specifically for thermal power applications.

Regional Considerations for Global Power Infrastructure

Environmental Challenges

Ambient temperatures 45-50°C compound process heat exposure
Airborne sand and dust require enhanced sealing and filtration
Coastal atmospheres (Gulf region) combine high humidity with salt-laden air
Limited natural cooling reduces heat dissipation effectiveness

Material Recommendations

Duplex stainless steel (2205, 2507) for coastal combined-cycle plants providing superior chloride stress-corrosion cracking resistance
Nickel-aluminum-bronze for seawater-cooled condenser systems
Enhanced external protective coatings (epoxy phenolic, polyurethane) with UV resistance
Actuator enclosures rated IP65+ for dust ingress protection

Infrastructure Considerations

Extended supply chains requiring strategic inventory management
Limited local technical service infrastructure in remote locations
Preference for standardized, globally-supported component specifications
Variable power quality affecting electric actuator reliability

Future Trends: Smart Valve Technology and Digitalization

Industry 4.0 Integration in Power Generation

The global smart valve market projected to reach $12 billion by 2025 reflects accelerating digital transformation. Power generation leads adoption due to:

Predictive Maintenance Through IoT Sensors

Modern valve systems integrate:

Temperature monitoring: Direct measurement of body, bonnet, and packing box temperatures
Vibration analysis: Accelerometers detecting bearing wear, misalignment, cavitation
Position feedback: Continuous stem position verification vs. command signal
Torque monitoring: Seating force measurement indicating wear or binding
Acoustic emission: Detecting internal leakage, cavitation, or structural defects

Machine learning algorithms analyze historical performance data predicting failures 30% earlier than time-based preventive maintenance schedules. This reduces unplanned downtime by 38% in automated facilities while extending component service life through condition-based interventions.

Digital Twin Technology for Performance Optimization:

Leading manufacturers (Emerson, Siemens Energy, Baker Hughes) offer digital twin platforms simulating valve performance in virtual environments. Applications include:

Trim sizing optimization for changing load profiles in flexible dispatch scenarios.
Maintenance scheduling based on actual duty cycles rather than conservative intervals.
Material selection validation using site-specific temperature, pressure, and fluid chemistry data.
Failure mode prediction incorporating metallurgical degradation models.

Hydrogen Economy and Carbon Capture Applications

Emerging High-Temperature Valve Requirements

The global energy transition creates new extreme-environment applications

Hydrogen Infrastructure

Cryogenic service: Valves rated to -253°C for liquid hydrogen storage and distribution
High-pressure gaseous H2: 700+ bar (10,000+ psi) for compression and transport
Hydrogen embrittlement resistance: Materials like Inconel 625, 316L with controlled hardness
Zero-leakage requirements: Metal-seated designs with helium leak testing verification

Velan, Emerson, and specialized manufacturers now offer “hydrogen-ready” valve lines specifically engineered for H2 service.

Carbon Capture, Utilization, and Storage (CCUS):

CO2 compression: High-pressure valves handling 90%+ concentration supercritical CO2
Corrosion resistance: Materials resisting carbonic acid formation when moisture present
Temperature cycling: Compression heat followed by cooling in storage pipelines
Long-term sealing: Preventing leakage over 50+ year storage timeframes

Cameron (Schlumberger) offers dedicated CCUS valve products addressing these unique requirements as carbon capture becomes essential for fossil power plant continued operation.

Strategic Excellence in High-Temperature Valve Engineering

Valve selection for extreme temperature power generation applications represents a sophisticated engineering discipline requiring comprehensive understanding of material science, thermal mechanics, fluid dynamics, and lifecycle economics. As global power infrastructure expands—from ultra-supercritical coal plants in Southeast Asia to concentrated solar facilities in the Middle East, from flexible dispatch combined-cycle plants supporting renewable integration to emerging hydrogen and carbon capture technologies—the critical role of properly engineered high-temperature valves grows increasingly vital.

Engineer for Total Cost of Ownership
The 15-25% initial purchase price represents a fraction of lifecycle costs. Premium materials and designs delivering 40% longer service life and 50% reduced maintenance frequency provide exceptional ROI.

Prioritize Material Science
Temperature-appropriate alloy selection—from F22 chromium-molybdenum steels to Inconel superalloys—determines whether valves achieve 15-year service life or fail within months. Pressure-temperature deration according to ASME B16.34 is non-negotiable.

Embrace Digital Integration
Smart valve technologies with IoT connectivity and predictive maintenance reduce unplanned downtime by 30-38% while enabling performance optimization impossible with conventional designs.

Leverage Global Supply Networks
Multi-continental sourcing combining local presence with international manufacturing access ensures rapid response to emergencies while optimizing procurement costs.

Invest in Quality Assurance
Third-party inspection, comprehensive testing, and certification to international standards (ASME, API, ISO) protect against costly failures and ensure regulatory compliance across diverse jurisdictions.
